Some useful tips to remember the formulas for slope and deflection of beam

The civil engineering students often find it difficult to remember the vital formulas associated with slope and deflection of beam. To resolve this issue, an easy to follow algorithm can be used. This formula will facilitate the civil engineering students to remember the formula life time.

In engineering, deflection signifies the degree by which a structural element is dislocated under a load. It may belong to an angle or a distance. The beams utilized for frame work are chosen based on the deflection, along with other factors.

If a structure whether it is a Beam or Slab, bends from its original position because of the effect of loads acting upon it, it signifies that the beam is deflected from its original position and it is known as Deflection. The slope of that deflection refers to the angle among the original position and the deflected position.

The deflection of a spring beam is based on its length, its cross-sectional shape, the material, where the deflecting force is employed as well as how the beam is supported. The equations provided here are for uniform, linearly elastic materials, and where the rotations of a beam are minor.

Go through the following construction video tutorial to know the various issues associated with simply supported beams how to create your own algorithm to resolve these issues.

Video Courtesy : IY zone

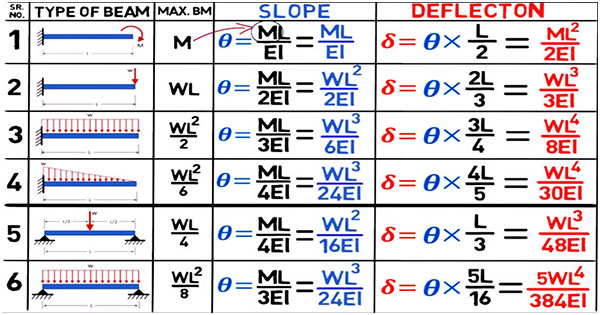

shortcut formulas beam
